Parameter

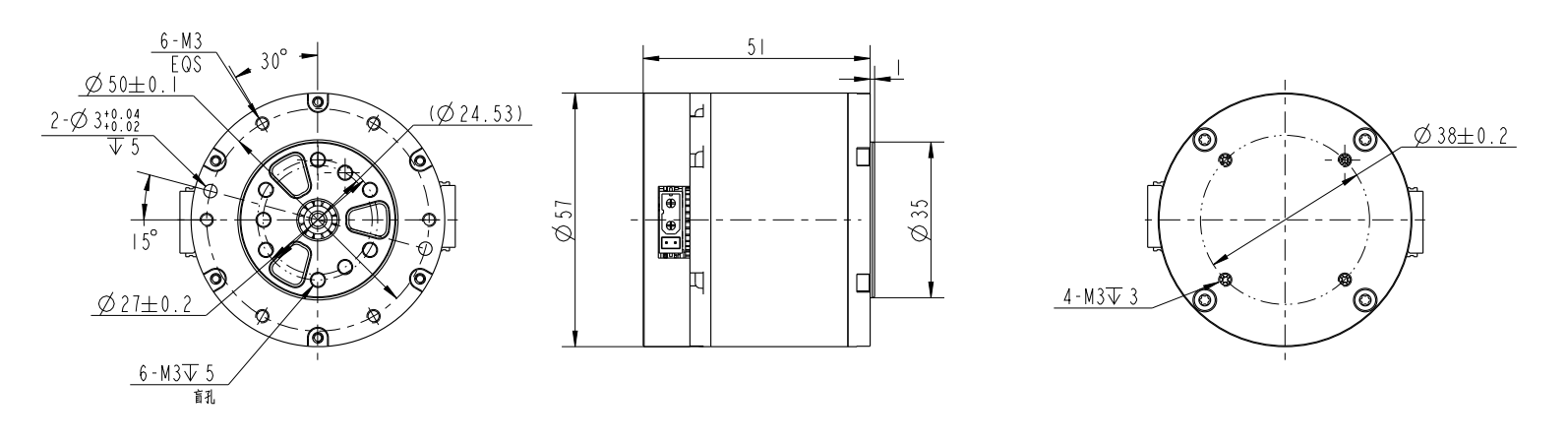

Overall Dimensions
Download
CooperationElectrical Specs
| Item | Spec |
| Magnetic Encoder | 2 pcs |
| Rated Voltage | 48V |
| Voltage Range | 24-60V |
| Rated Output Power | 140w ±10% |
| Rated Torque | 5N.m |
| Peak Torque | 14N.m |
| Running Direction | CW/CCW |
| Temperature Range | -20~50℃ |
| Humidity Range | 5~85% |
| Storage Temperature Range | -30~70℃ |
| Insulation Level | Class B |
| No-load Speed | 315 rpm ± 10% |
| No-load Current | 0.5 Arms |
| Rated Load Speed | 260 rpm ± 10% |
| Rated Load Phase Current | 4.7Apk ± 10% |
| Peak Phase Current | 15.5Apk ± 10% |
| Insulation Resistance/ Stator Winding | DC 500VAC，100M 0hms |
| High Voltage Resistance/ Stator and Casing | 600VAC, 1s, 2mA |
| Back-EMF | 0.095 Vrms/rpm ±10% |
| Line Resistance | 1.5±10%Ω |
| Torque Constant | 1.48 N.m/Arms |
| Inductance | 750±20μH |
Mechanical Specs
| Item | Spec |
| Weight | 310g ±3g |
| Pole | 28 |
| Phase | 3 |
| Drive Method | FOC |
| Reduction ratio | 10:01 |
Performance Curves
Max Overload
| Load (N.m) | Operating Time (s) |
| 5 | rated |
| 7 | 120 |
| 10 | 18 |
| 12 | 10 |
| 14 | 5 |
