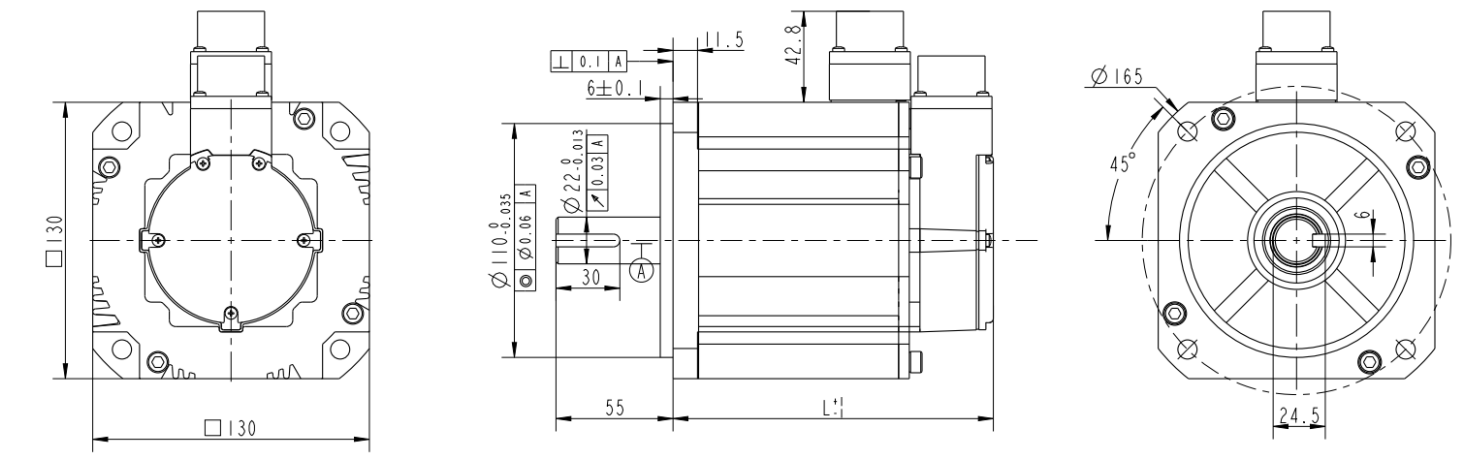

Overall Dimensions
Download
Cooperation繞組連接方式 ( Winding Type ) | 星形 ( Star connection ) |
徑向負載 ( Max radial force ) | 490N @ 20mm from the flange |
軸向負載 ( Max axial force ) | 196N |
絕緣等級 (Insulation Class) | Class B |
防護等級 (Protection level) | IP65 |
使用環境溫度 (Temperature) | -20℃~ +50℃ |
使用環境濕度 (Relative humidity) | ≤90%RH (無凝露)( No dewing) |
存儲環境 (Storage Condition) | -20℃~ +60℃，≤85%RH (無凝露)( No dewing) |
安裝環境(Installation environment) | 遠離腐蝕、可燃性氣體，油滴，灰塵， 海拔≤1000m Far away active gas, Combustible gas, oil drop, ash |
Pin No | 引出線型號Type | 引出線顏色Color | 功能Functions |
5 | UL1332 AWG26
| 綠色 ( Green ) | 霍爾電源正 ( Vcc ) |
1 | 黃色 ( Yellow ) | 霍爾 U ( Hu ) | |
2 | 棕色 ( Brown ) | 霍爾 V ( Hv ) | |
3 | 灰色 ( Gray ) | 霍爾 W ( Hw ) | |
4 | 藍色 ( Blue ) | 霍爾電源負 ( GND ) | |
1 | 具體規格見圖紙定義 | 黃色 ( Yellow ) | U相 ( Phase U ) |
2 | 紅色 ( Red) | V相 ( Phase V ) | |
3 | 黑色 ( Black ) | W相 ( Phase W ) |
| 類型 (Model) | 單位(Unit) | FL130BLG200 | FL130BLG300 | ||
| 額定功率(Rated power) PN | W | 2000 | 3000 | ||
| 額定電壓(Rate d voltage) UN | VAC/VDC | 220 | 48 | 220 | 48 |
| 額定轉速(Rate d speed) nN | rpm | 2000 | 2000 | 2000 | 2000 |
| 額定轉矩(Rate d tor que) TN | N.m | 9.55 | 9.55 | 14.3 | 14.3 |
| 額定電流(Rate d current) IN | Arms | 7.8 | 52.9 | 11.7 | 79.3 |
| 峰值轉矩(Peak torque) TM | N.m | 28.65 | 28.65 | 42.9 | 42.9 |
| 峰值電流(Peak current) IM | Arms | 23.4 | 158.7 | 35.1 | 237.9 |
| 電阻(Line to line resistance) Rz | ohm | 1.4 | 0.03 | 0.84 | 0.018 |
| 電感(Line to line inductance) Lz | mH | 6.8 | 0.14 | 4.8 | 01 |
| 反電勢系數(Back EMF constant) Ke | V/krpm | 81 | 12 | 81 | 12 |
| 轉矩系數(Torque constant) K | N.m/A | 1.22 | 0.18 | 1.22 | 0.18 |
| 轉動慣量(Rotor inertia) Jm0 | kg.cm 2 | 14 | 14 | 19.9 | 19.9 |
| 轉動慣量帶制動器(Rotor inertia with brake) Jm1 | kg.cm 2 | 15.2 | 15.2 | 20.2 | 20.2 |
| 極數(Number of poles) | 10 | 10 | 10 | 10 | |
| 機身長度(Motor length) L1 | mm | 150 | 165 | 178 | 193 |
| 機身長度帶制動器(Motor length with brake) L2 | mm | 178 | 193 | 206 | 221 |
| 重量(Weight) | kg | 7 | 7.5 | 11.7 | 12.7 |
| 重量帶制動器(Weight with brake) | kg | 9.5 | 10 | 14.2 | 15.2 |
該款電機可以根據客戶需求定制。
The motor can be designed &manufactured with customized request.
