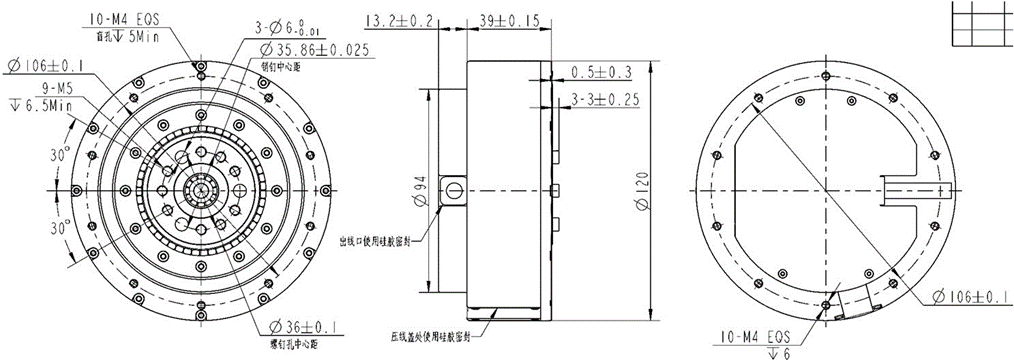

Overall Dimensions
Download
CooperationElectrical Specs
| Item | Spec |
| Magnetic Encoder | 2 pcs |
| Rated Voltage | 48V |
| Voltage Range | 15-60V |
| Rated Output Power | 700w ±10% |
| Rated Torque | 40N.m |
| Peak Torque | 120N.m |
| Running Direction | CW/CCW |
| Temperature Range | -20~50℃ |
| Humidity Range | 5~85% |
| Storage Temperature Range | -30~70℃ |
| Insulation Level | Class B |
| No-load Speed | 200 rpm ± 10% |
| No-load Current | 0.7 Arms ±10% |
| Rated Load Speed | 167 rpm ± 10% |
| Rated Load Phase Current | 27Apk ± 10% |
| Peak Phase Current | 90Apk ± 10% |
| Insulation Resistance/ Stator Winding | DC 500VAC，100M 0hms |
| High Voltage Resistance/ Stator and Casing | 600VAC, 1s, 2mA |
| Back-EMF | 16.9 Vrms/krpm ±10% |
| Line Resistance | 0.16Ω ± 10% |
| Torque Constant | 2.1N.m/Arms |
| Inductance | 0.211mH ±10% |
Mechanical Specs
| Item | Spec |
| Weight | 1420g |
| ±20g | |
| Pole | 42 |
| Phase | 3 |
| Drive Method | FOC |
| Reduction ratio | 9:01 |
Erformance Curves (TBD)
Max Overload
| Load (N.m) | Operating Time (s) |
| 40 | rated |
| 46 | 2500 |
| 70 | 350 |
| 80 | 160 |
| 120 | 10 |
