Motor Shaft   diameter

Suitable for shaft   diameter 3mm,4mm,5mm,6mm,6.35mm,8mm

Storage Temperature

-40℃～85℃

Environmental   conditions

Application

No corrosive, flammable, explosive, conductive   gas, liquid and dust.

Temperature

-40℃～80℃

Humidity

No more than 85% RH

Electrical   Parameter

Supply Voltage

5VDC±0.5V

Current Consumption

≤60mA

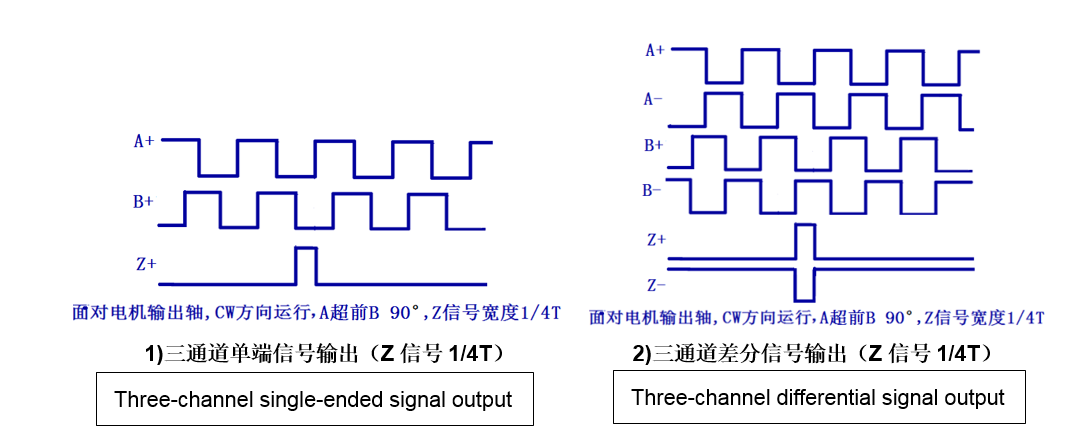

Signal Output

Single-ended

5V,GND,A,B,Z

Differential

5V,GND,A+/A-,B+/B-,Z+/Z-

Output Level mode

TTL Compatible

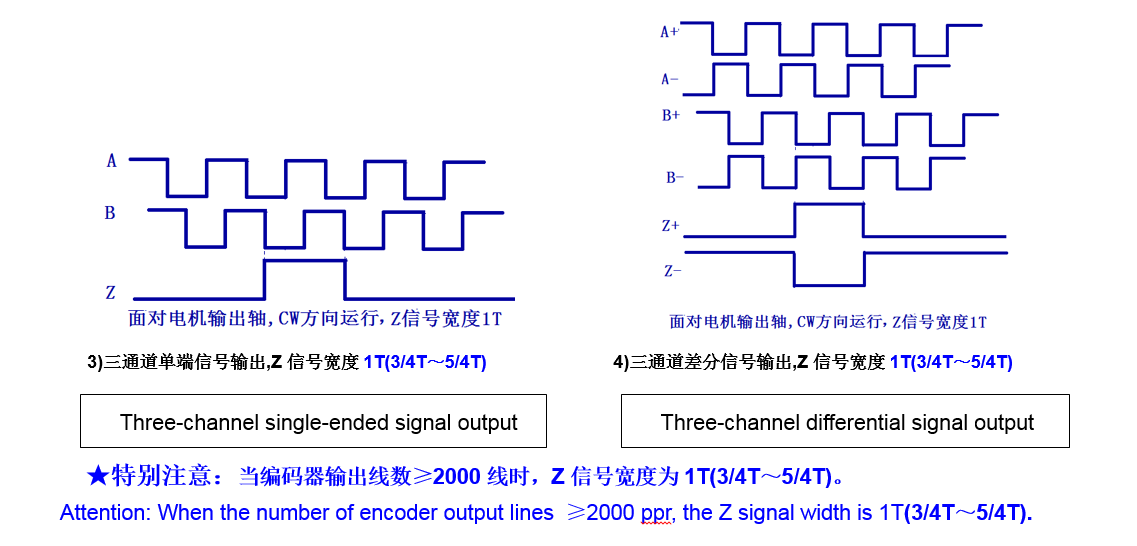

Index Width

1/4T / 1T(3/4T～5/4T)

 (According to the PPR)

Differential   Output Voltage

High Level   Output (VoH) ≥3.4V

Low Level Output   (VoL) ≤0.4V

Differential   Signal Output Format

Line Drive 26C31

Optional   Resolution（Unit:PPR）

Decimal: 100,200,360,400,500,1000,2000,2500

Binary: 256,512,1024,2048

Duty cycle

50% ±10%

Phase difference

 90°±10°

Frequency Response

≤500KHz

Note: The signal frequency = (Speed(Rpm) *  number of Lines)/60
