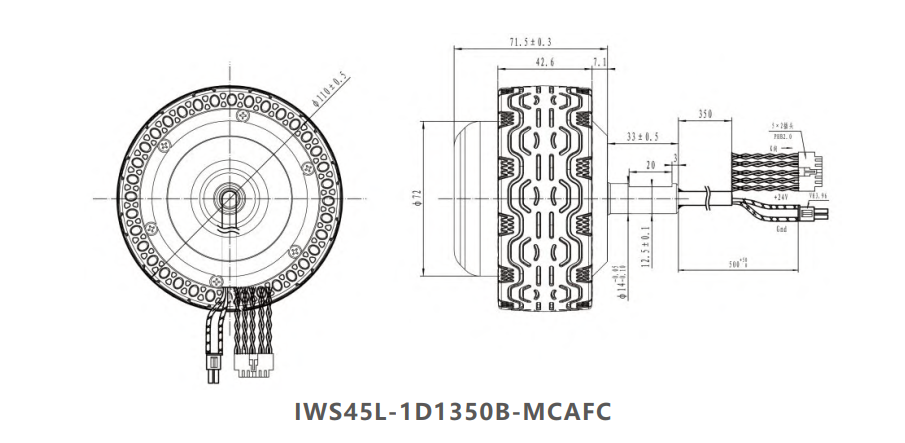

Overall Dimensions
Download
Cooperation1. Specifications
| Model | IWS45L-1D1350B-MCAFC |
| Diameter Size | 110mm |
| Rated Voltage | 24VDC |
| Rated Current | 2.2 Arms |
| Maximum speed | 350rpm(Line speed 2m/s) |
| Rated Torque | 1.1 N.m |
| Peak Torque | 3 N.m |
| Communication | UART+CAN |
| UART Baudrate | 115200bps，support controlled by controller or PC software |
| CAN Baudrate | 500kbps/1Mbps set by DIP switch |
| Protection Function | Over-Voltage,Low-Voltage,Over-load,Short-circuit,High temperature,Speed-loss etc. |
| Operating Temperature | -10℃～40℃（Non-freezing） |
| Operating Humidity | 5～95%RH（Non-condensing） |
| Storage Temperature | -10℃～70℃（Non-freezing） |
| Storage Humidity | Below 90%RH（Non-condensing） |
| Protection Class | Ip67 except shaft |
| Weight | 1.3Kg |
| Suggested Load (2 PCS) | Below 30kg |

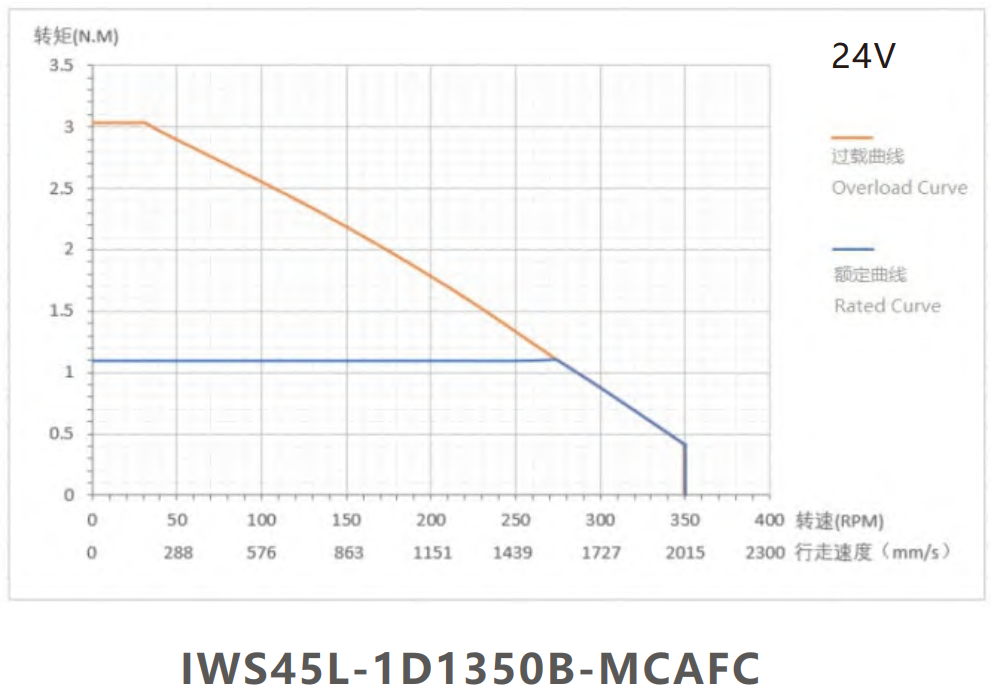

2. Torque Curve
| IWS Series Hub Motor Motor User Manual - Fulling Motor | 1.1 MB |
|
