Features :

● CL2505 adopts the latest 32 bit special motor control DSP chip and optimized closed-loop control technology

● Input voltage from 24 to 50VDC (36V/48VDC Recommended)

● Continuous output effective current:2.0A (Max), suitable for 42 mm and below closed-loop stepper motor

● Input signal level is compatible 5V~24V, Maximum pulse response frequency up to 500KHz (Factory default is 200KHz)

● Pulse, Direction, Enable differential signal input，giving consideration to differential, common-anode and common-cathode connection method.

● Common-cathode connection method of output signal，alarm, pend signal, Z signal, brake control. The position and Z signal dialing code can be set by dial switch.

● Micro-step dial switch setting（200-51200）, When all the Micro-step dial switch is ON, the upper computer can modify any Micro-step at will.

● Pulse direction and CW&CCW control mode, open and closed loop mode selection, smoothing filter time can be set by dial switch.

● With  protection functions from over - voltage, under - voltage, over - current and position following error.

● Performance: smooth motion, super-low motor noise, small overshoot, small position following error.

Typical application：

Suitable for medium and small automation machines and equipment, such as electronics manufacturing equipment, 3C non-standard automation equipment, screw machine, peeler machine, winding machine, crimping machine, laser cutters, marking machine, inkjet printers, engraving machines, automatically crawl devices, Special CNC numerical control machine tool, packing devices, robots and so on.

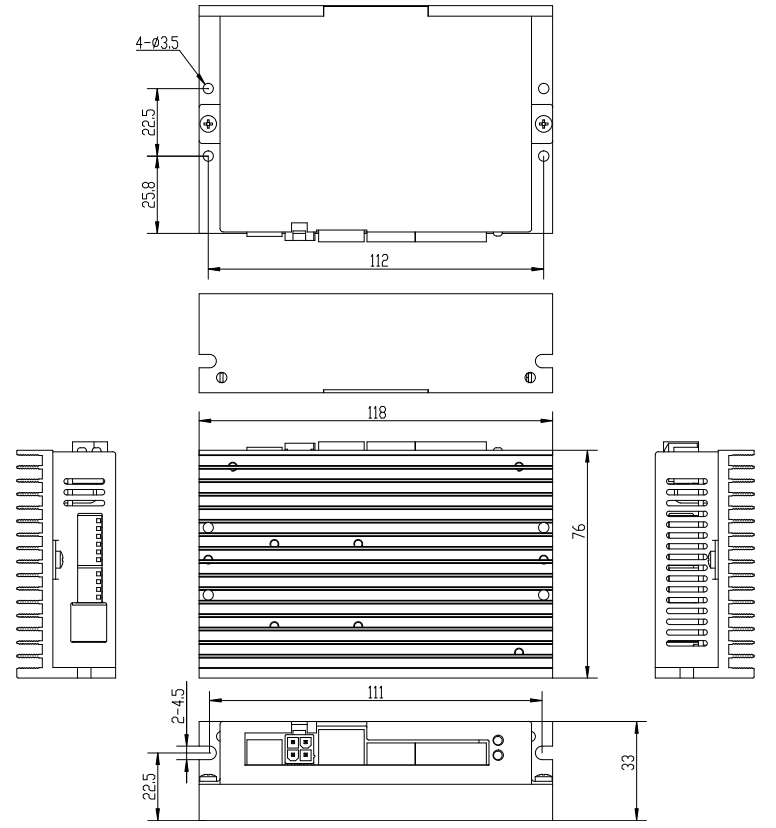

Product overview :

CL2205 adopts the latest special motor control DSP chip and optimized closed-loop control technology which can reduce the motor vibration, effectively reduce the motor heating, prolong the motor lifespan through the intelligent regulation of current. The high speed torque attenuation is much lower than that of the ordinary open-loop driver, which can greatly improve the high speed performance and torque utilization rate of the stepper motor, thus improving the efficiency and precision of the machine.

It is very convenient for clients to monitor and control by the Built-in output signals - PEND, ALARM, BRAKE and to ensure the safe operation of processing equipment by alarm function of position following error. Two groups of 10-bit dial switch can be used for a number of common function settings, including single and double pulses, open and closed loop mode selection, instruction smoothing filter time and so on, which can make debugging more convenient. Fulling is committed to providing customers with cost-effective motor control solutions.

DIP Switch Configuration :

Interface description :

Note:

1. Please ensure that the wiring of the motor and encoder is correct, otherwise the position error alarm will appear after the driver is powered on and receives pulse signals.

2. In motor assembly, it is strictly forbidden to knock on the rear end cover of the motor to avoid damaging the encoder.
